Hydralit

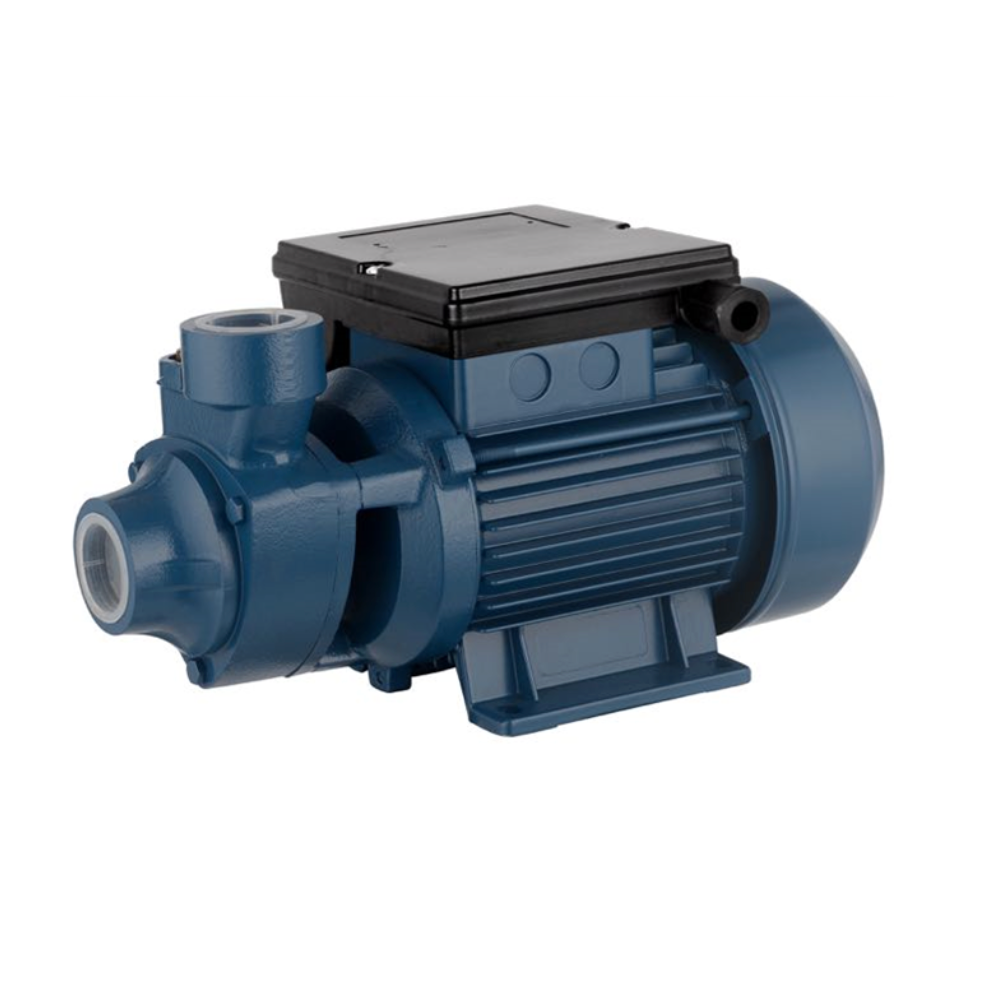

Peripheral centrifugal electric pump

Peripheral centrifugal electric pump

€59,00 EUR
€59,00 EUR
Sale Sold out
Tax included.

HYDRAREP050

Monobloc electric pumps with radial impeller with axial suction port and upward delivery port . This series of electric pumps allows the suction of water up to 7 meters deep. The main feature of this series is that it develops medium - high heads with relatively modest powers. They are excellently suited for lifting and distributing water in domestic systems, villas, farmhouses, small farms, gardens and for feeding pressure boilers. The use with chemically and mechanically clean liquids is always recommended , and in any case with temperatures never higher than +60°C.

OPERATING DATA

  • Flow rates up to 50 l/min (3.0m³/h )
  • Heads up to 65 metres
  • Rotation speed 2850 rpm
  • Continuous duty S1
  • Maximum suction height: 7 meters

APPLICATIONS

  • Drinking water supply
  • Domestic pressurization increase
  • Small/medium garden irrigation
  • Emptying of tanks and pools
  • Movement of clean water in general also on industrial machinery

PUMP CHARACTERISTICS

  • Monobloc pump with horizontal axis
  • Pump body and support in G20 cast iron
  • Shaft in AISI 416 stainless steel
  • Mechanical seal in ceramic/graphite
  • Impeller in brass
  • 1" G suction and delivery ports

ENGINE FEATURES

  • Closed-type electric motor with external ventilation
  • Degree of protection IP X4
  • Insulation class F
  • Single-phase motors at 220-230 V – 50 Hz; integrated motor protector to avoid damage in case of overheating
  • Maximum temperature: ambient 40° – liquid 60°
