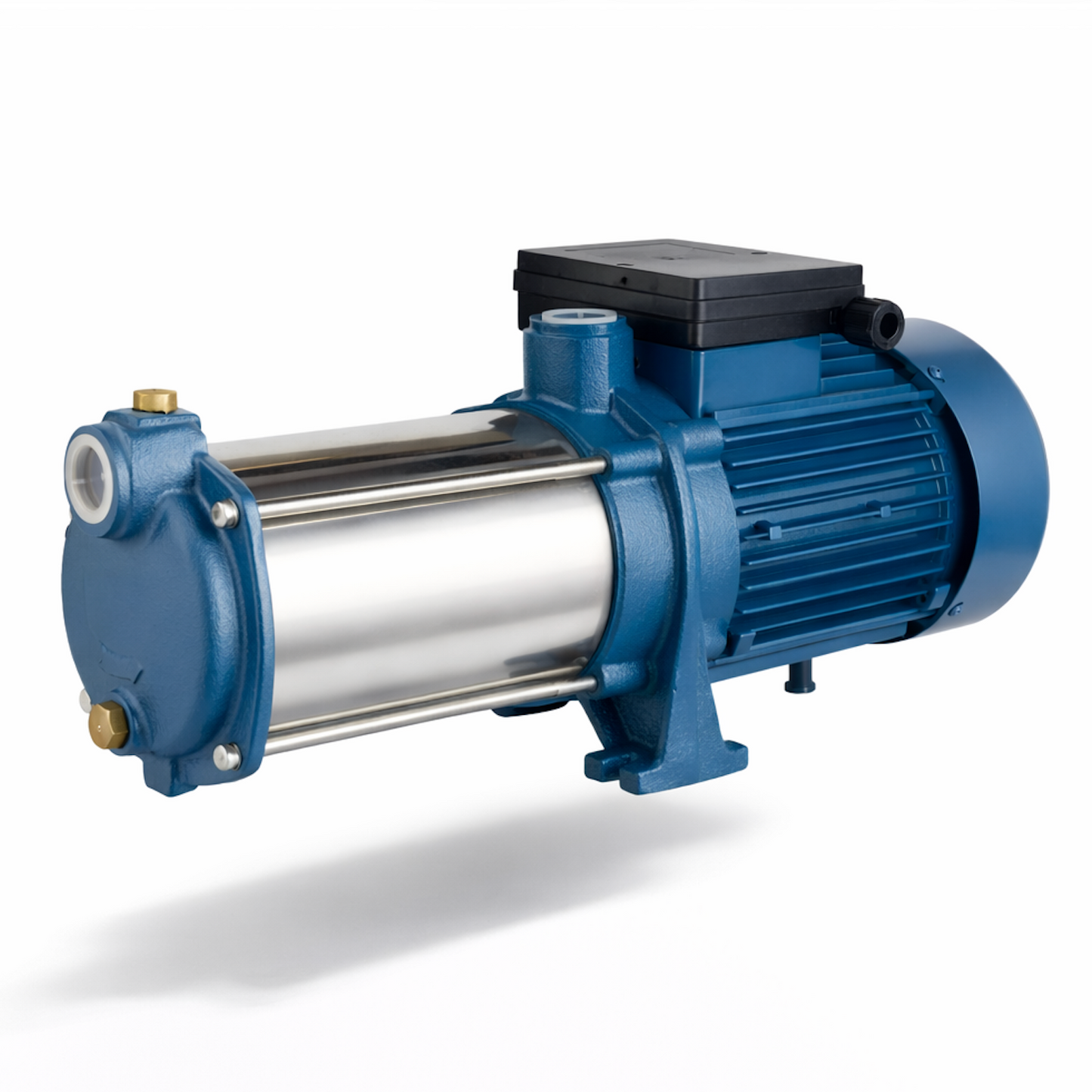

Horizontal multistage electric pump

Self-priming multistage horizontal axis electric pumps, with versions from 3 to 6 impellers in PPO. This series of electric pumps allows the suction of water up to 9 meters deep. The HYDRAMG series develops good heads, making it ideal for lifting and distributing water in domestic systems, villas, farmhouses, small farms, gardens and for feeding pressure boilers. It is always recommended to use with chemically and mechanically clean liquids, and in any case with temperatures never higher than +60°C.

OPERATING DATA

• Flow rates up to 90 l/min (5.4 m³/h )
• Heads up to 68 metres
• Rotation speed 2850 rpm
• Continuous duty S1
• Maximum suction height: 9 meters

APPLICATIONS

• Drinking water supply
• Domestic pressurization increase
• Small/medium garden irrigation
• Emptying of tanks and pools
• Movement of clean water in general also on industrial machinery

PUMP CHARACTERISTICS

• G20 cast iron suction pump body and support
• Stainless steel jacket
• Shaft in AISI 304 stainless steel
• Mechanical seal in SIC/Graphite
• PPO impellers

ENGINE FEATURES

• 2 pole induction motor
• Class B insulation and S1 continuous service
• IP68 protection
• Built-in thermal
• Copper winding
• Maximum temperature: ambient 40° – liquid 60
